Mark Levinson Nº533H 3-Channel Power Amplifier

Description

The Mark Levinson No533H is an incredibly clever deign, offering an almost identical level of performance to the 531H and 532H mono-and stereo- power amplifiers, which providing a scalable internal power system that helps deliver optimum performance to each channel as need. This make it the perfect amplifier for the all important front three channels in a home cinema system, ensuring the incredible performance of the 531H and 532H is delivered to all three primary front channels from a single chassis.

Reference AV say:

_“The Mark Levinson Nº533H is a rarity. Few manufacturers have the foresight to offer a three channel amplifier, fewer still can offer one that delivers the same sonic virtues as its mono and stereo siblings. The 533H provides the ultimate flexibility for multi-channel system and is the cornerstone that the rest of the system can be built around. _”

Categories: Mark Levinson, Power Amplifiers

Unrivalled High-End Performance at the Price Point

The Nº533H shares the same basic amplifier module as the Nº531H and Nº532H but is a semi-monoblock design. With power supplies that can be shared across multiple channels, this design lends itself well to multi-channel environments where one channel might need more power at times than others. All other features of the Nº533H are identical to the Nº531H and Nº532H and the common design creates a consistent sonic signature for use in multiple amplifier system configurations.

The heart of the No500H Series amplifiers – elegant simplicity. The use of multiple smaller capacitors allows them to be physically closer to the amplifiers themselves providing for greater transient response when power is needed immediately. The No531H, No532H and No533H each have sixteen output transistors per channel while the No535H has twelve per channel. All models are fully-differential designs with robust power supplies and are stable into 2 ohms.

All four No 500H Series amplifiers feature 12V trigger and Ethernet control ports for system integration and can be rack mounted using third-party custom rack shelves.

Features and Benefits

Reliable, high-power in four different channel configurations provide ideal solutions for any system

Ethernet and 12V trigger control capability for system integration

Isolated chassis and signal grounds minimize noise, optimizing detail, even at low listening levels

Fully-differential circuitry with both balanced XLR and single-ended RCA inputs

Detailed Specifications:

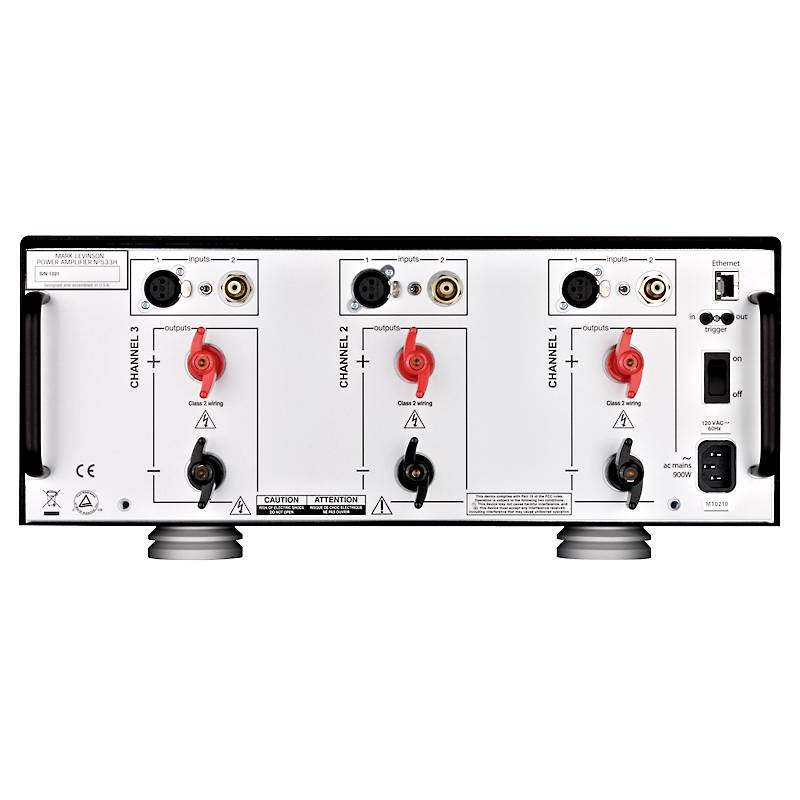

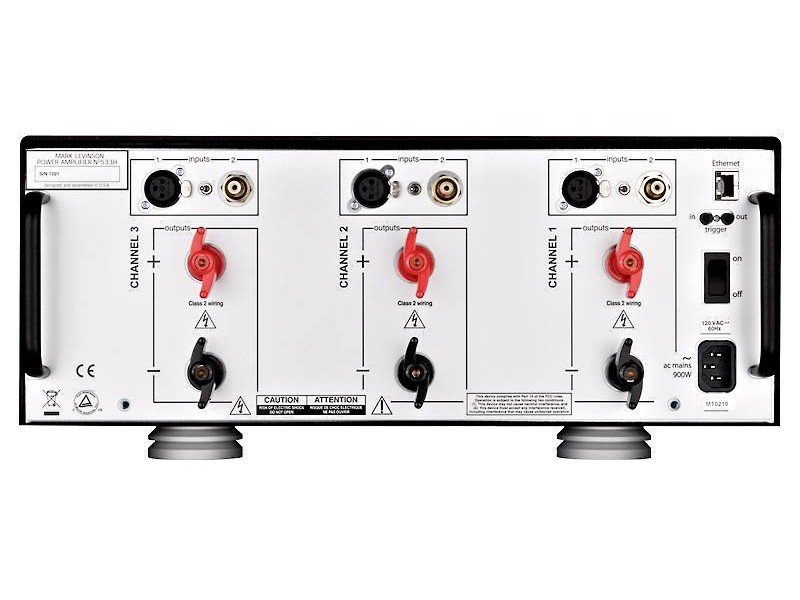

COMMUNICATION AND CONTROL: One Ethernet 10Base-T port; one 3.5mm mono (tip/sleeve) mini plug trigger input, 3-12Vdc; one 3.5mm mono (tip/sleeve) mini plug trigger output, 3-12Vdc; 3-pin IEC standard power connector

FREQUENCY RESPONSE: Within 0.5dB from 10Hz to 20kHz

INPUTS: One balanced XLR input per channel; one unbalanced RCA input per channel

INPUT IMPEDANCE: 60 kΩ (balanced); 30 kΩ (unbalanced)

INPUT SENSITIVITY: 2.83Vrms output at 130mVrms input

RATED OUTPUT POWER INTO 8 OHMS: 300W/ch (20Hz to 20kHz)

GAIN: 26.8dB

POWER REQUIREMENTS: 100V~, 120V~, 230V~, factory set for destination country;

POWER CONSUMPTION: 900W

SPEAKER CONNECTIONS: One pair “Hurricane” loudspeaker outputs with banana-plug sockets per channel (banana-plug socket not available on the 230 VAC models) Communication and Control one Ethernet 10Base-T port; one 3.5mm mono (tip/sleeve) mini plug trigger input, 3-12Vdc; one 3.5mm mono (tip/sleeve) mini plug trigger output, 3-12Vdc; 3-pin IEC standard power connector

SIZE: HEIGHT – (with feet): 7.65″ (19.4cm); (without feet): 6.97″ (17.7cm) x WIDTH – 17.75″ (45.1cm) x DEPTH – 19.83″ (50.4cm)

WEIGHT: Net Weight: 90.0 lbs (40.8kg) Shipping weight: 100.0 lbs (45.4kg)
