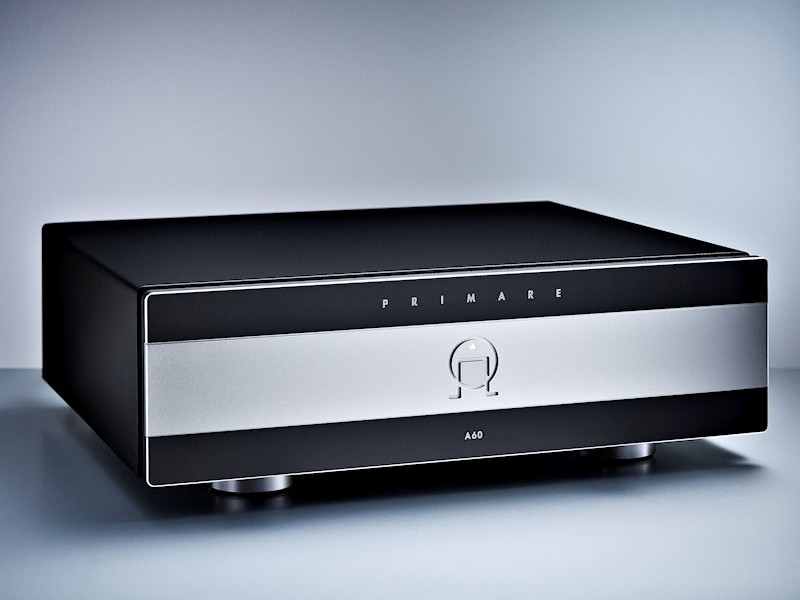

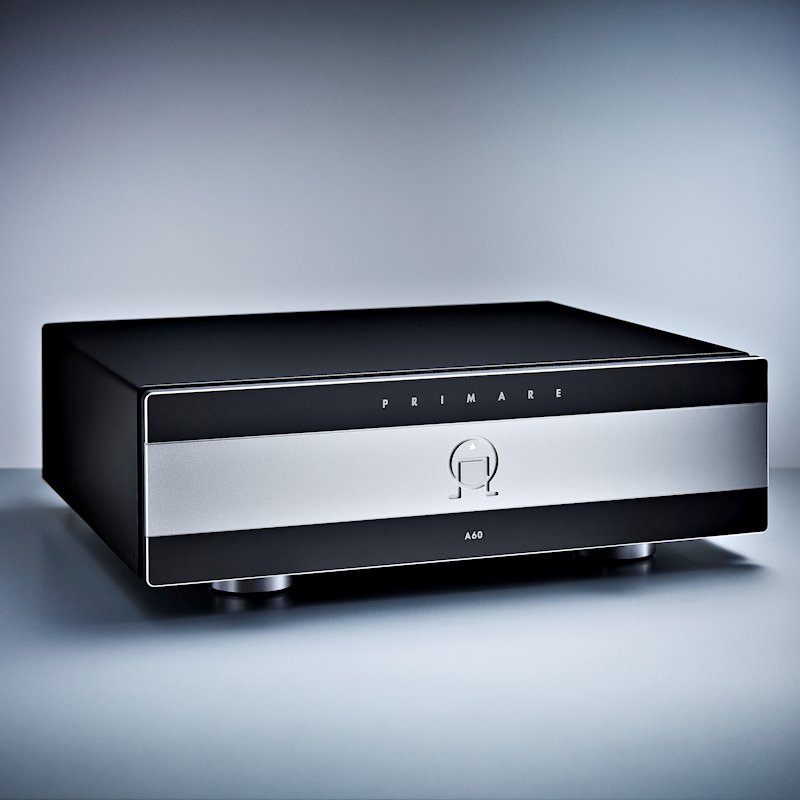

Primare A60 Power Amplifier

Highly Refined and Powerful Class D Power Amplifier

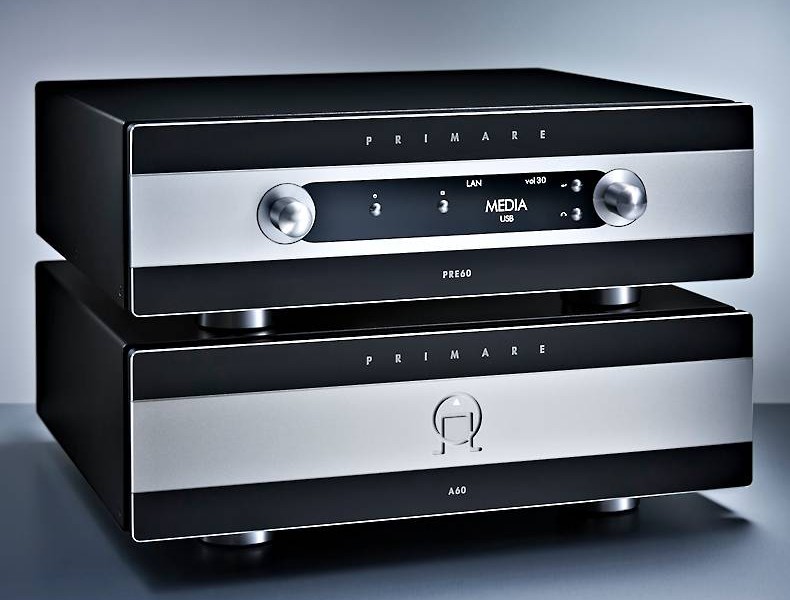

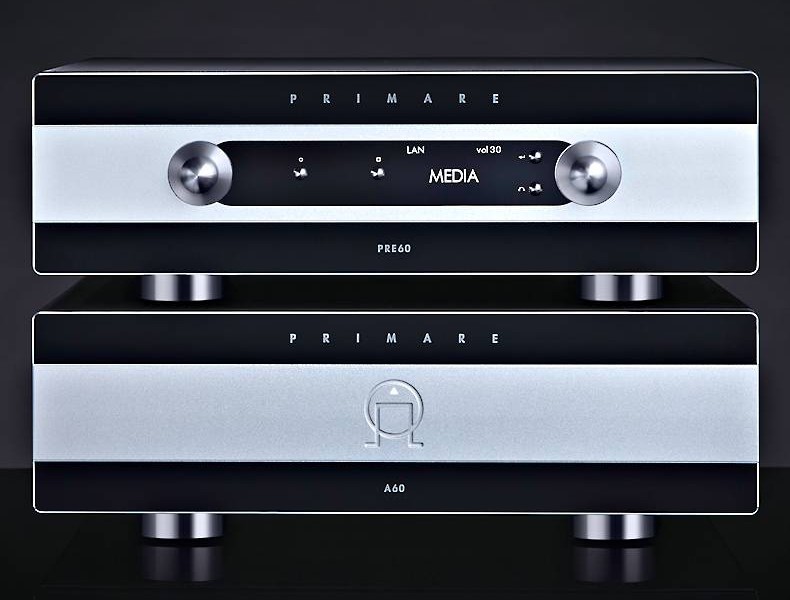

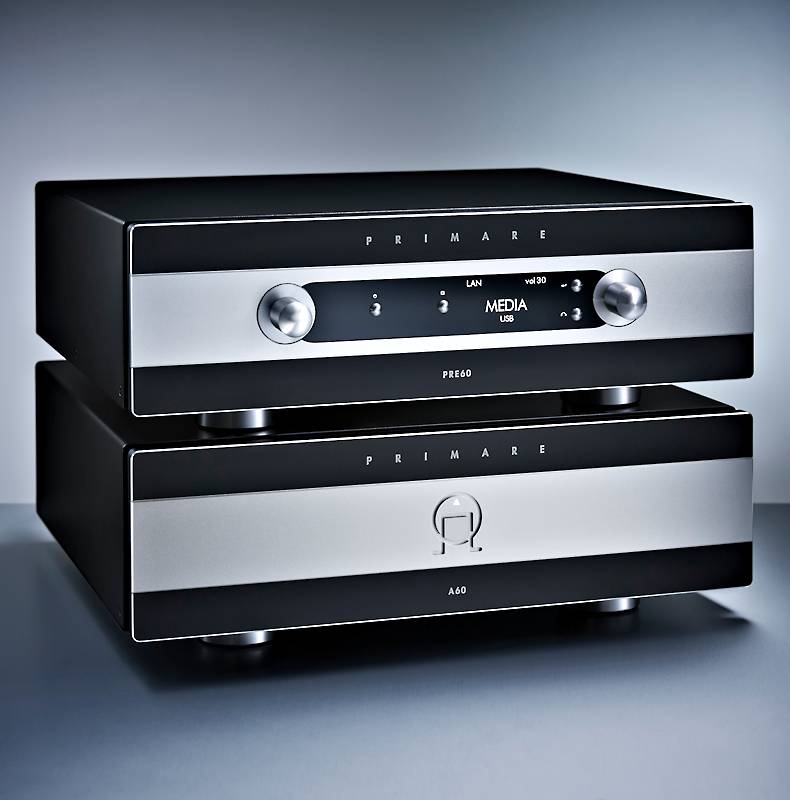

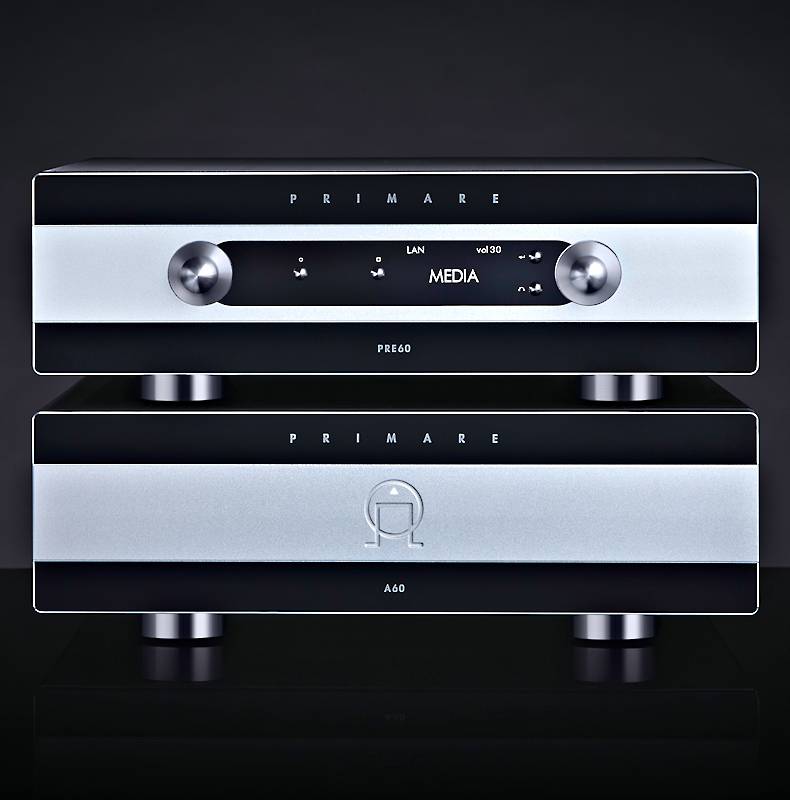

The A60 is a reference audiophile, fully balanced 2 x 250W UFPD stereo power amplifier designed to complement all high-end pre-amplifiers but chiefly as a companion to its matching PRE60 pre-amplifier. With the 60 series components, Primare reclaims its presence in the high-end music system market, reprising the iconic designs of previous decades with ravishing new separates, complete with state-of-the-art audio streaming performance and striking two-tone bodywork. By combining our traditional build quality and analogue circuit design with the finest digital processing, the first 60 series music system represents a major step-up from the 30 series and introduces a new supremely audiophile level of performance to our product range.

The A60 is designed to provide high power output with very low distortion for our PRE60, as well as multi-channel audio processors. UFPD’s instantaneous rise time results in a naturally fast, clean and agile sound over a much wider frequency range and with exceptional headroom. Ecologically the A60 is far superior to conventional Class A/B designs being extremely efficient without generating excessive heat.

Features and Benefits


Fully balanced signal transmission UFPD technology with 4 output models (2 for each channel) in balanced configuration


Heavy Switch mode power supplies (2600VA peak)


Excellent 1% MELF resistors


Multi-layer Board (4) for very short signal paths, optimum grounding and best performance


Fully protected (In case of DC or overheating is indicated, the A60 will mute the loudspeaker output) Custom made heat-sinks for best signal path and performance (direct mount on the PCB board)

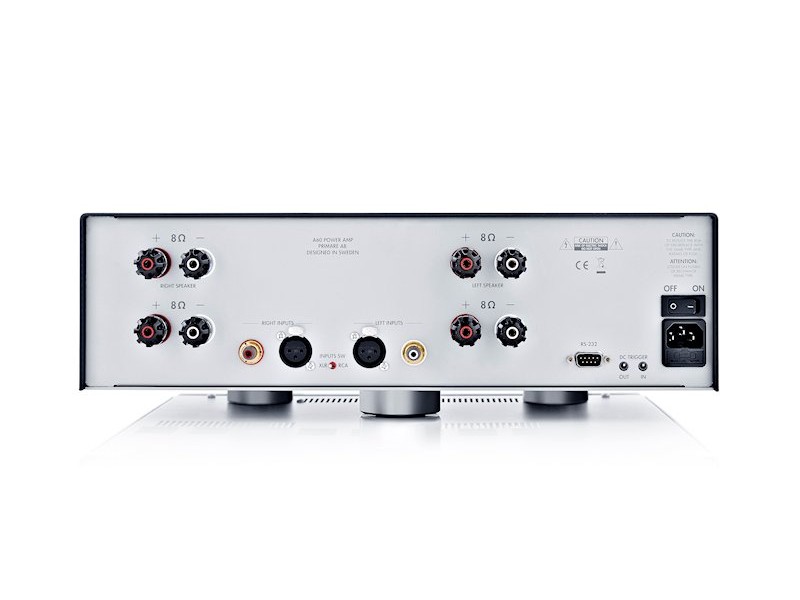

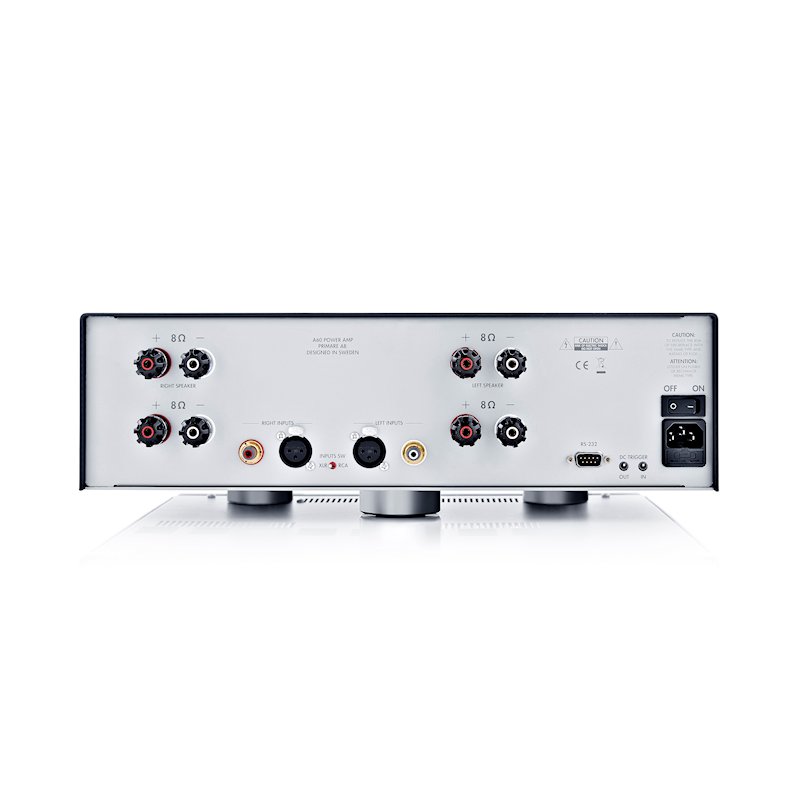

High grade WBT nextgen Speaker connectors (two pairs)


High grade WBT nextgen RCA sockets


Neutrik XLR connectionsVan


Den Hul SCS12 Cable (for internal speaker connection)


Unbalanced input signal will be transformed to balanced Discrete regulated power supply for the input stage

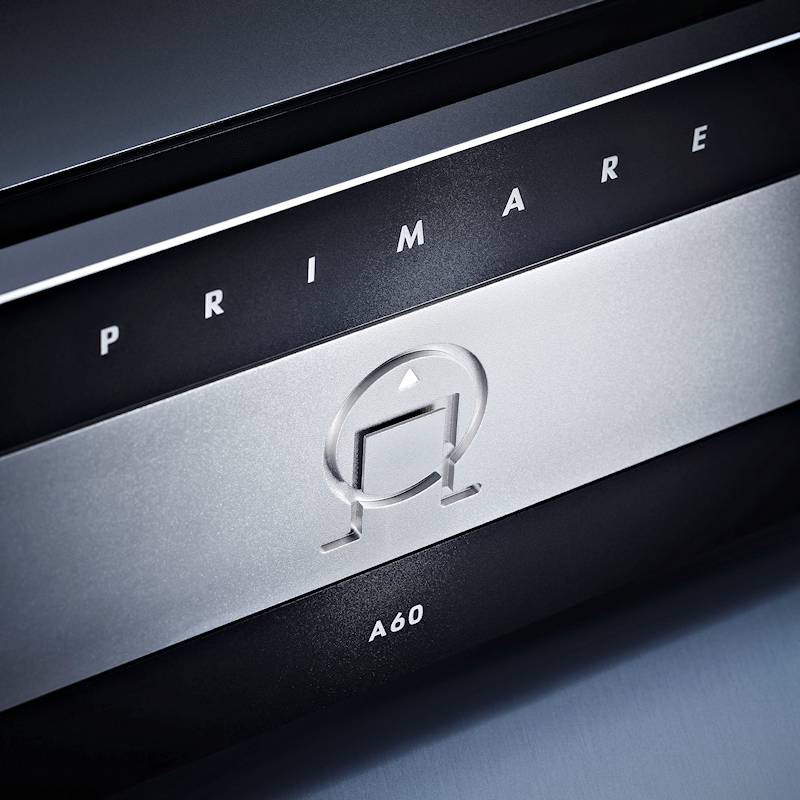

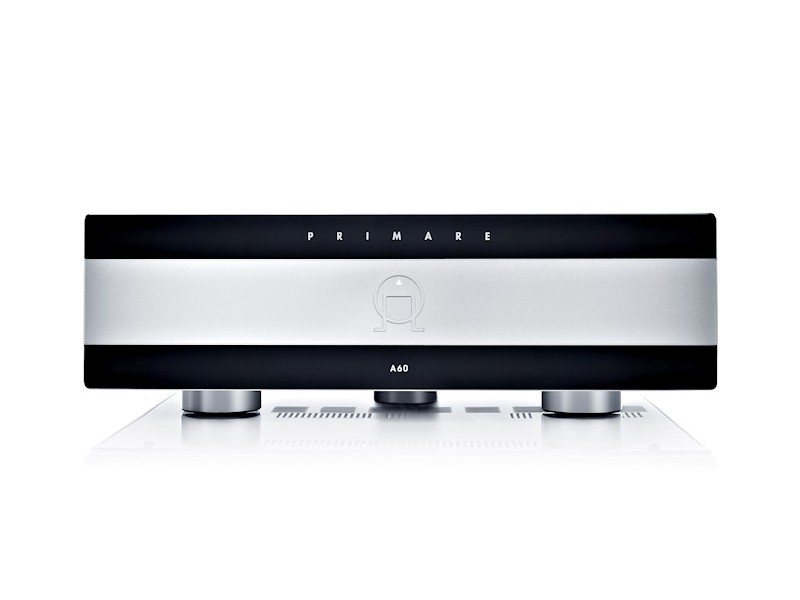

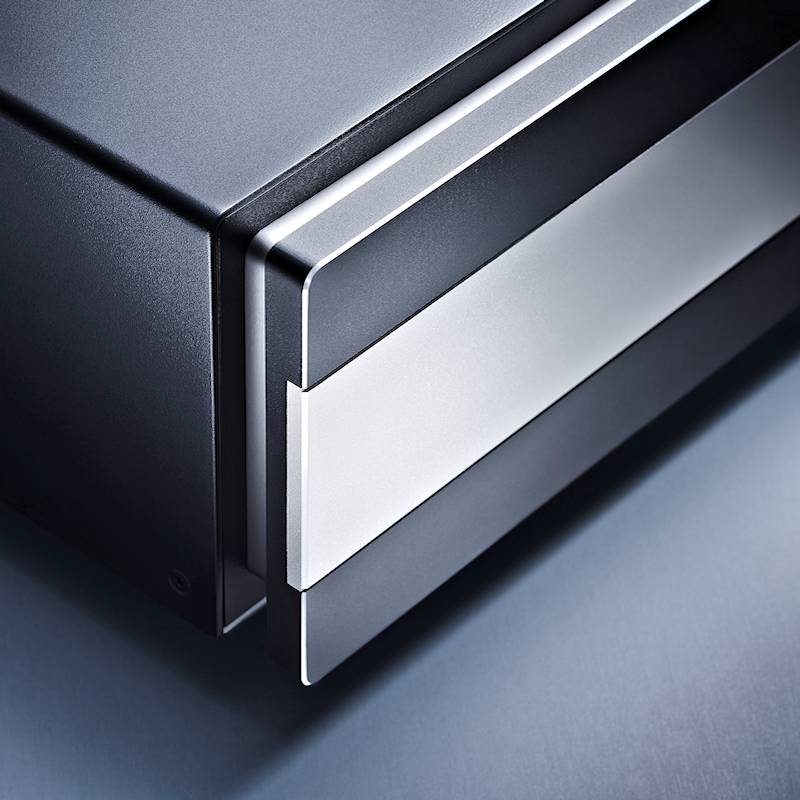

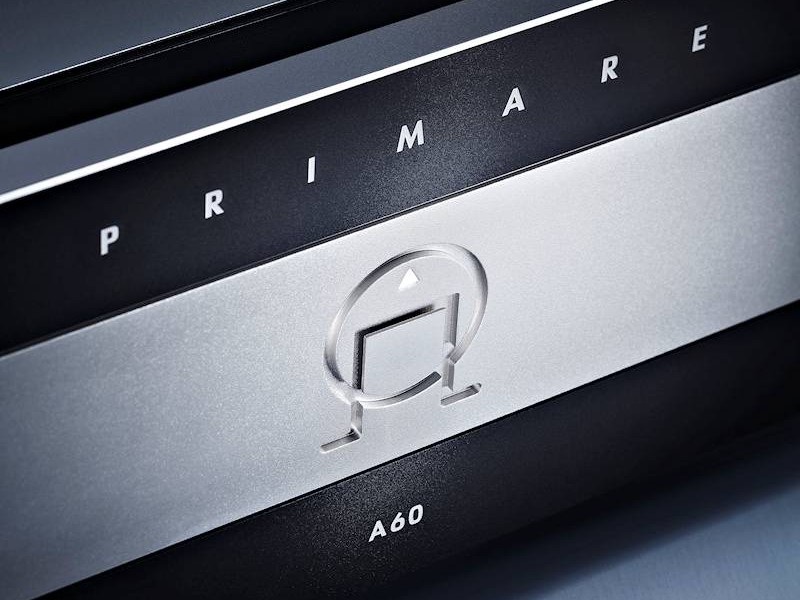

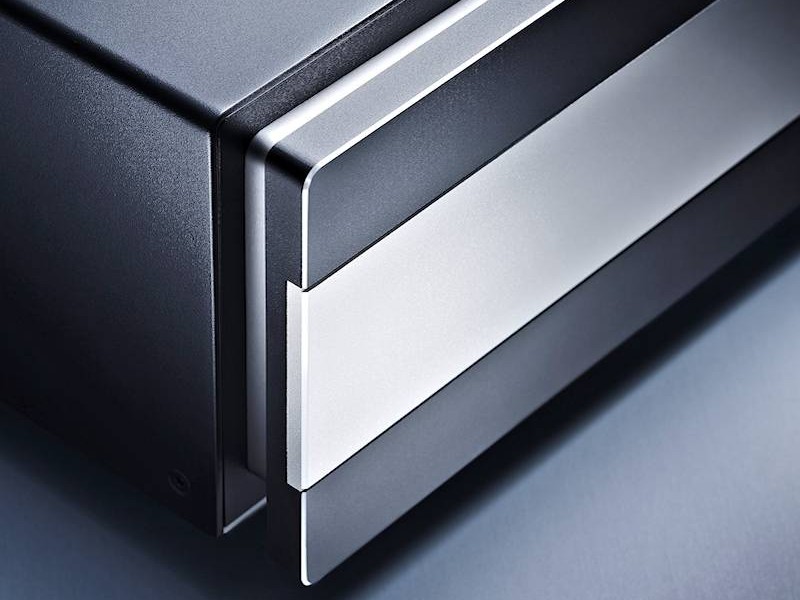

Heavy-duty chassis with aluminium front panel (15mm) with integrated LOGO, standby/power button


RS232, trigger in/out


Detailed Specifications:


Output power:     2 x 250W 8 ohm (both channels driven), max 610W 2x500W 4 ohm (both channels driven), max 1230W


THD+N:   <0.02% (1kHz 250W 8 ohm); <0.002 (10W 8 ohm)


Signal to Noise:   20-20kHz unweighted –105dBV


Gain:   26dB Unbalanced, 20dB balanced


Power Consumption:   Standby: 0.5W; Operate: max 32W


Dimensions:   (WxDxH) 430 x 385 x 142mm




 Review

Documentation to be added soon . . .
