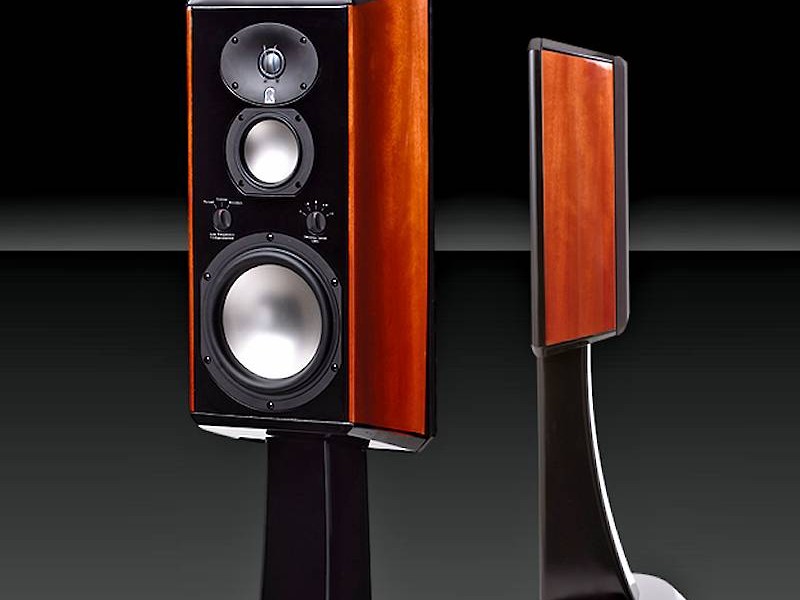

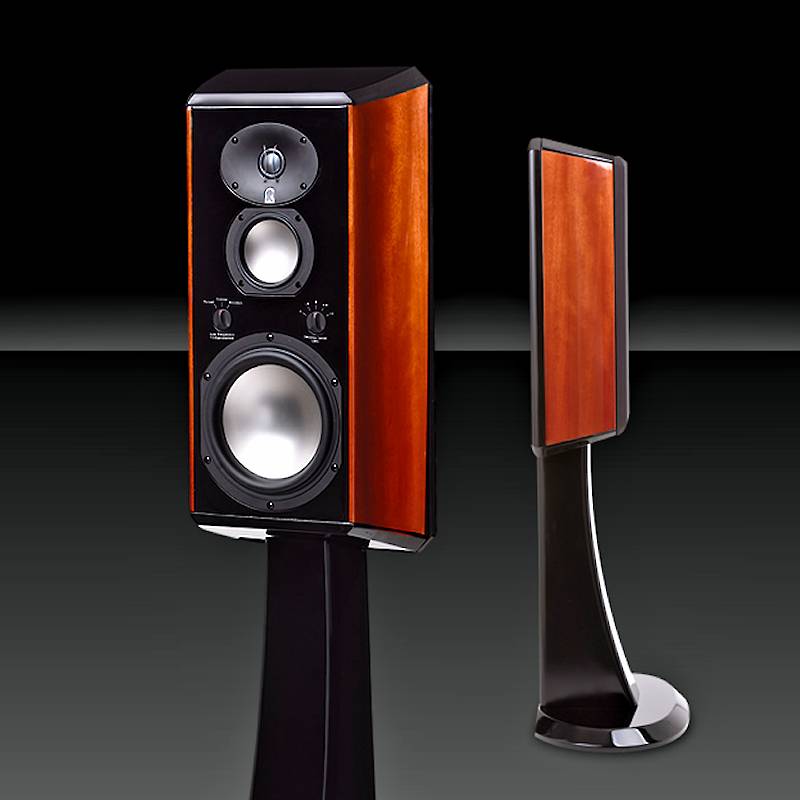

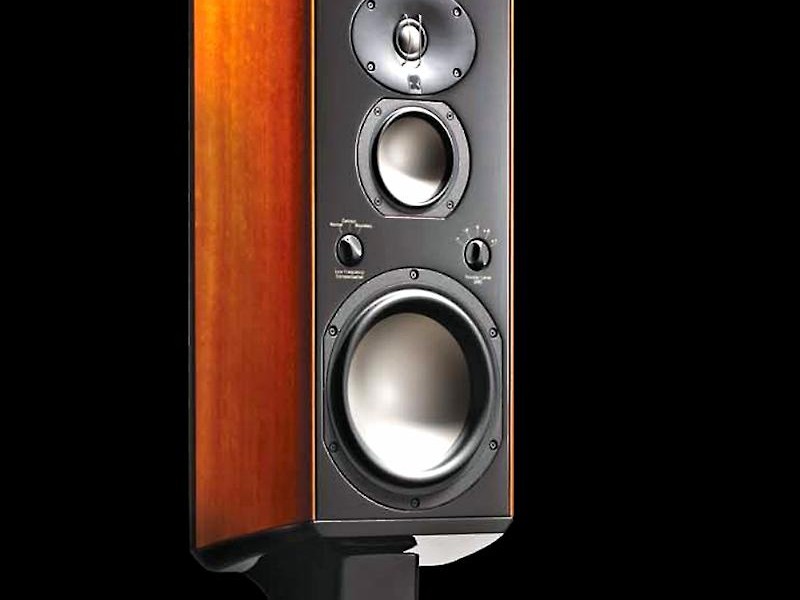

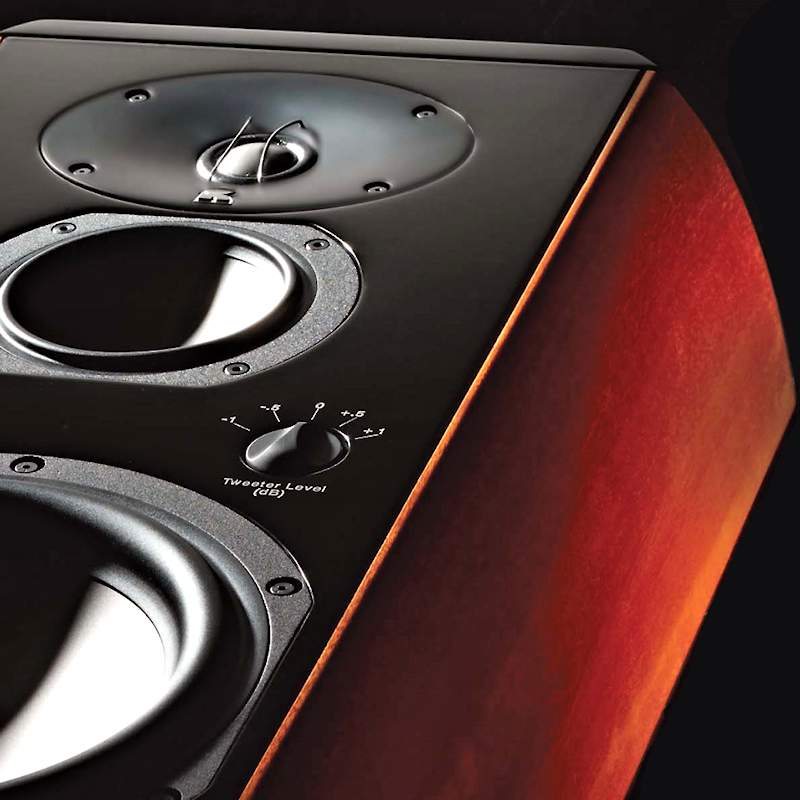

Revel Ultima Gem2 Standmount Loudspeaker

Raising the Standard for Ultrahigh-end Luxury Audio

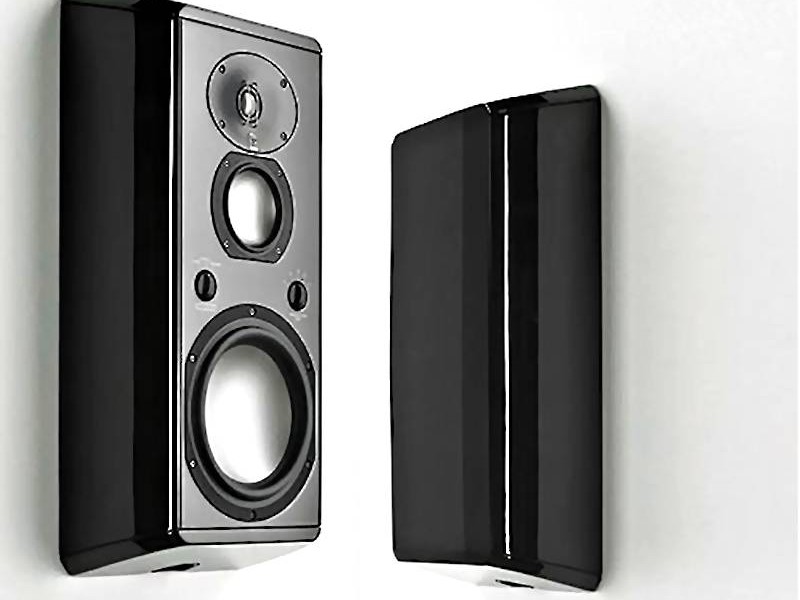

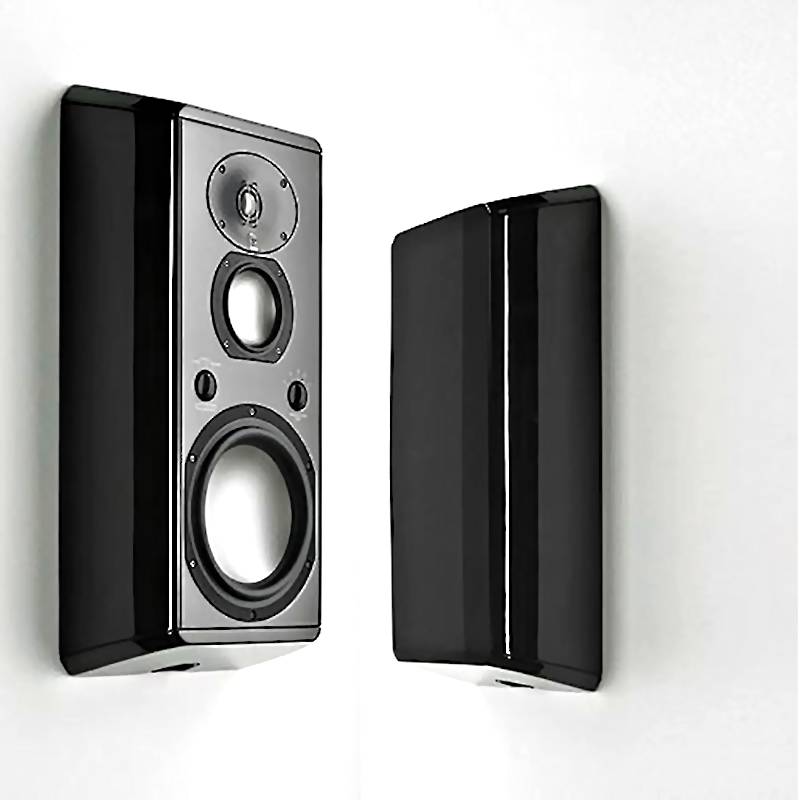

The Revel Ultima Gem2 is, as the name implies, a design with a multifaceted nature. Optimized for a range of applications and equipped to face any room placement, it’s versatile in the extreme yet sonically uncompromising. For example, the Gem2 can be used as a high-quality front loudspeaker, either on available pedestals or wall-mounted using the included bracket. In two-channel or multi-channel applications, the Gem2 is the loudspeaker for solutions. And thanks to their low profile wall-mounting, the Gem2 makes them especially attractive for use with the wide range of state-of-the-art flat-panel televisions.

The Gem2 is equally optimized for use as a surround loudspeaker, offering ideal timbre matching with other Revel Ultima2 series loudspeakers for a seamless and immersive multichannel performance. Whether the respective owner is inclined towards intimate stereo listening or wants to employ Gem2 in a sophisticated side- and back-channel ultimate Ultima2 array, Gem2 will exceed all expectations. And since Gem2 is built to the same exacting standards of the entire Ultima2 family, you can be confident that any combination of mixing and matching will yield the same rich tonal balance and timbre-matched dispersion characteristics for which Revel Ultima2 loudspeakers are renowned.

Although the Gem2 loudspeakers are physically compact, the robust 3-way design delivers a one-two punch of reference-caliber tonal accuracy and astonishing output. Utilizing the latest transducer technology developed exclusively for the Ultima2 family, Gem2 offers an 8-inch woofer with an oversize 2-inch voice coil and a 4-inch midrange with a similarly-oversize 1 1/2-inch voicecoil. These drivers incorporate sophisticated double neodymium magnet assemblies and are wound with ribbon wire to provide performance of breathtaking output, rich timbre and tonal accuracy with both extraordinarily low dynamic compression and freedom from distortion. Revel’s breathtaking new pure beryllium tweeter provides pristine clarity to deliver an unequalled listening experience.

Features and Benefits


Rounded baffles and enclosures virtually eliminate diffraction


Woofer and midrange transducers feature inverted-dome designs for superior piston like behavior


Tweeters use acoustically optimized waveguides for seamless transitions between the tweeter and midrange


Pure-beryllium dome tweeters exhibit the optimal balance of high-power handling, low distortion and compression


Separate filter boards for each frequency range


Multi-faceted design allows for a range of applications and room placement


Detailed Specifications:


DESCRIPTION:   Ultima2 Loudspeaker Series, 3-Way Bookshelf Loudspeaker


FREQUENCY RESPONSE:   ±0.5 dB = 75 Hz to 18 kHz / ±1.0 dB = 72 Hz to 20 kHz / -3 dB = 70 Hz to 45 kHz


DIMENSIONS:   (HEIGHT) 24.2″ (61.5 cm) x (WIDTH) 12″ (30.5 cm) x (DEPTH) 5.4″ (13.7 cm)


WEIGHT:   32 lb (14.5 kg) / Shipping weight: 38 lb (17.2 kg)


CROSSOVER FREQUENCIES:   Three-way, high-order acoustic response @ 400 Hz and 2.3 kHz


FINISHES:   Piano black or mahogany finish


HIGH-FREQUENCY DRIVE COMPONENTS:   1″ (2.5 cm) beryllium tweeter


NOMINAL IMPEDANCE:   6 ohms (nominal) 3.4 ohms (minimum)


LOW FREQUENCY EXTENSION:   -10 dB at 48 Hz / -6 dB at 60 Hz / -3 dB at 70 Hz


LOW-FREQUENCY DRIVE COMPONENTS:   8″ (20 cm) titanium cone woofer


MID-FREQUENCY DRIVE COMPONENTS:   4″ (10 cm) titanium cone midrange


SENSITIVITY:   86.4 dB SPL with 2.83 V @ 1m (4 pi anechoic)


OPTIONAL ACCESSORIES:   Optional Tabletop Stand for Gem2 Adds 1.6″ (4.1 cm) to Gem2 height • Optional Floor Pedestal for Gem2 Adds 46″ (117 cm) to Gem2 height • Piano black finish only
