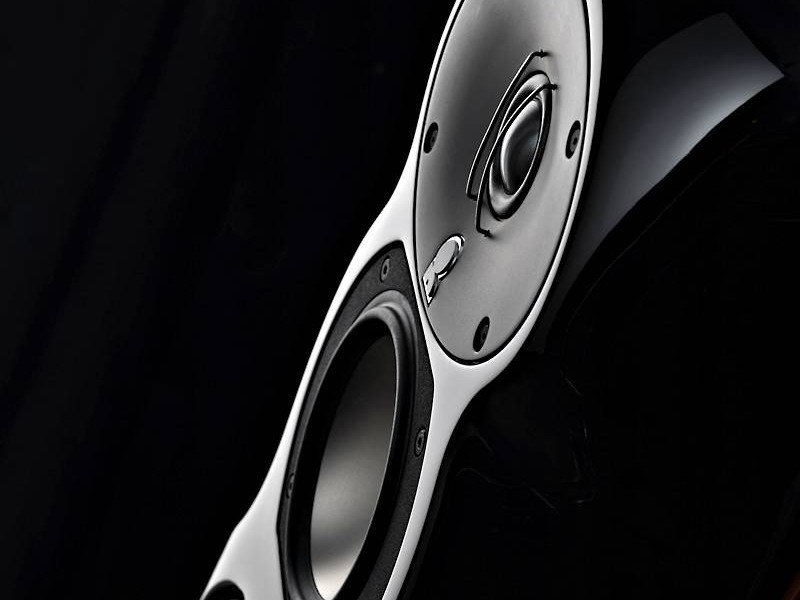

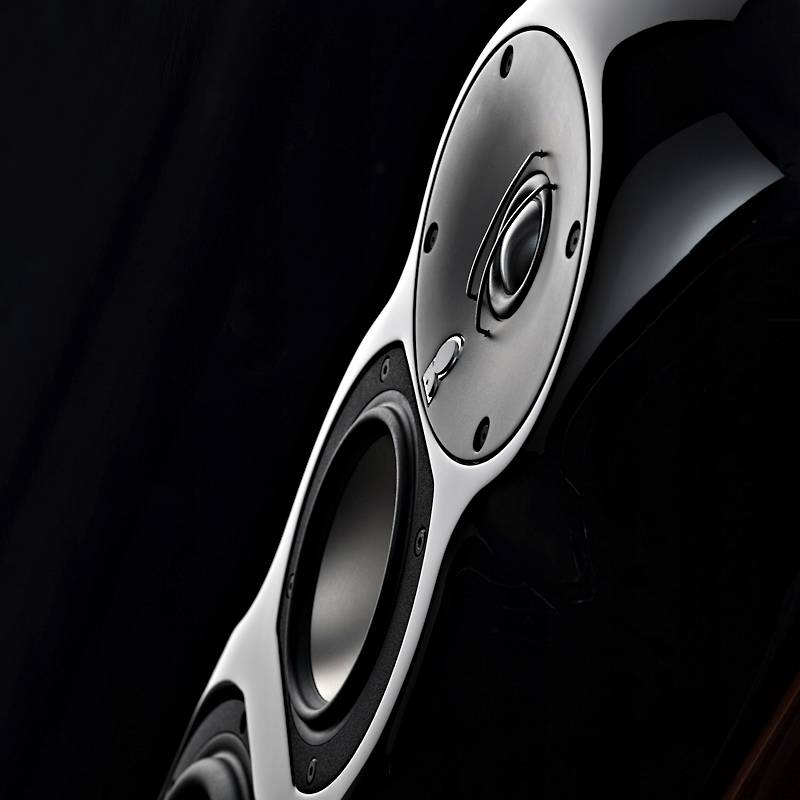

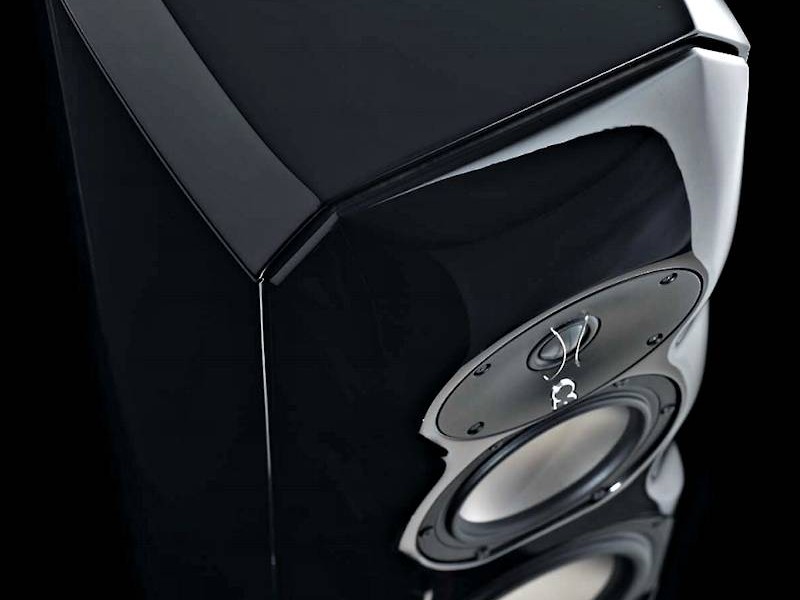

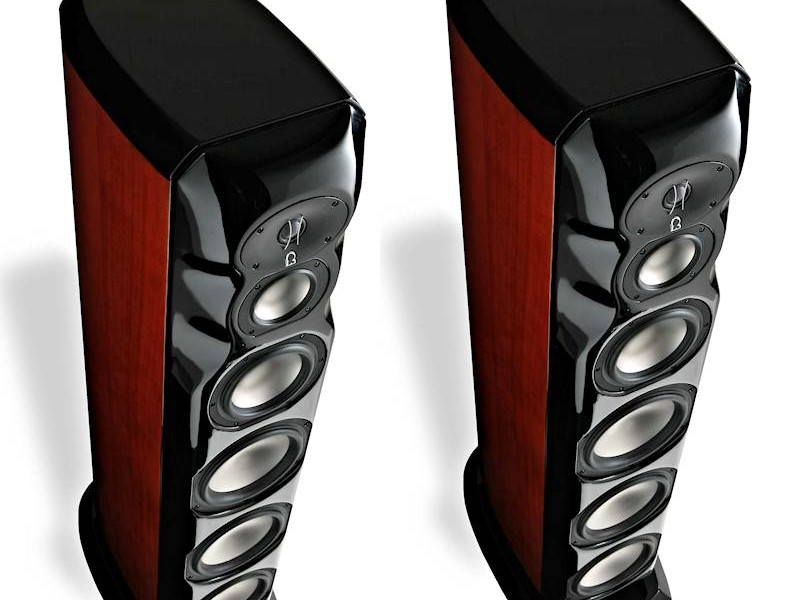

Revel Ultima Salon2 Floorstanding Loudspeaker

The Ultimate Full Range Reference Loudspeaker

The Ultima Salon2 and Studio2 are the most visionary speaker systems that the Revel team has ever produced.

Strikingly designed and crafted to exceed the demands of the most challenging installations and tastes, Salon2, and the less imposing Studio2, radiate an elegance and authority that can only be matched by their reference-standard sound quality. Imbued with the Revel philosophy that there is no separation between art and accuracy, the Salon2 does not editorialize sound reproduction; rather, it celebrates the full expression and soul of the actual musical event.

The Salon2 is built around a six-driver array in a four-way, vented system configuration. The transducers include three 8-inch titanium woofers, a 6 1/2-inch titanium mid-woofer, 4-inch titanium midrange and a 1-inch beryllium tweeter.

The multiple woofer arrays in Salon2 offer a fundamental advantage over the more traditional “big” woofer approach without sacrificing a decibel of bass foundation. The smaller cone diameters permit a narrower cabinet waistline, critical for managing diffraction artefacts. The result is pristinely focused imaging and as wide a soundstage as the recording will permit. Bass extension is likewise preserved by virtue of the robust collective output of the multiple woofers. For example, the three 8-inch woofers of a single Salon2 displace almost the equivalent diaphragm area of a single 14-inch woofer.

Features and Benefits


Curvilinear Single Piece Enclosure with 9 Layers of Laminated MDF


Narrow Sonically Optimized, 2 ½” Thick Baffle that Virtually Eliminates Diffraction Effects


Easily Removable, Magnetically Attached Grilles

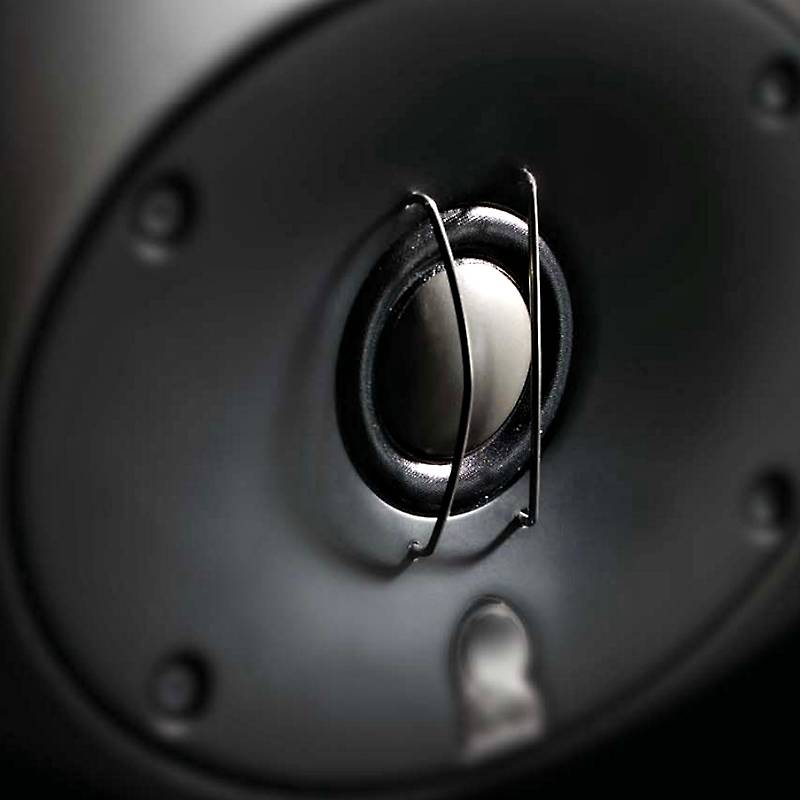

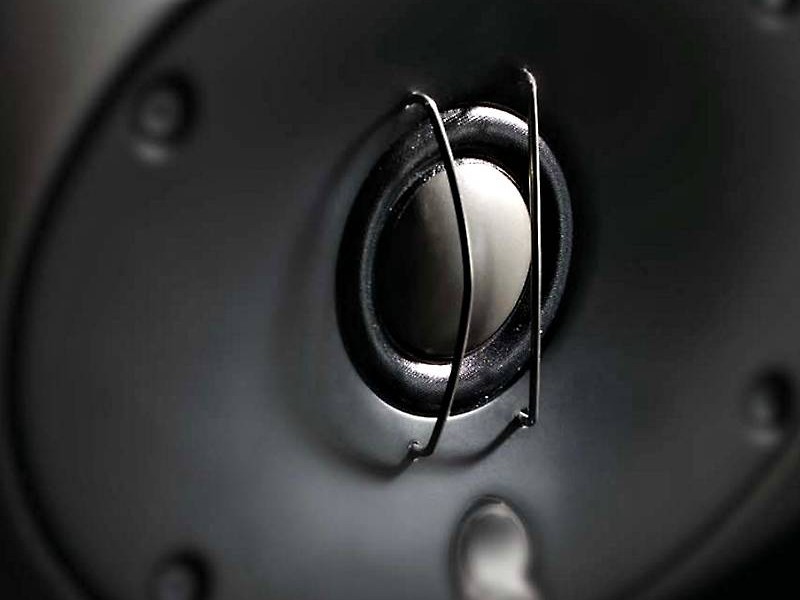

Pure Beryllium Dome Tweeter with 3rd Generation Waveguide Technology


Titanium Cone Woofer and Midrange with Inverted-dome Designs


Detailed Specifications:


DESCRIPTION:   Ultima2 Loudspeaker Series, 4-Way Floorstanding Loudspeaker


FREQUENCY RESPONSE:   ±0.5 dB = 29 Hz to 18 kHz / ±1.0 dB = 26 Hz to 20 kHz / ±3 dB = 23 Hz to 45 kHz


DIMENSIONS:   (HEIGHT) 53.3″ (135.4 cm) x (WIDTH) 14″ (35.6 cm) x (DEPTH) 23″ (58.4 cm)


WEIGHT:   146 lb (66.3 kg) Shipping weight: 178 lb (80.7 kg)


CROSSOVER FREQUENCIES:   Four-way, high-order acoustic response @150 Hz, 575 Hz, and 2.3 kHz


FINISHES:   Piano black or mahogany finish


ULTRA HIGH-FREQUENCY DRIVE COMPONENTS:   1″ (2.5 cm) beryllium tweeter


HIGH-FREQUENCY DRIVE COMPONENTS: 4″ (10 cm) titanium cone midrange


MID-FREQUENCY DRIVE COMPONENTS:   6 ½” (16.5 cm) titanium cone mid-woofer


LOW-FREQUENCY DRIVE COMPONENTS:   Three 8″ (20 cm) titanium cone woofers


NOMINAL IMPEDANCE:   6 ohms (nominal) 3.7 ohms (minimum @ 90 Hz)


LOW FREQUENCY EXTENSION:   -10 dB at 17 Hz / -6 dB at 20 Hz / -3 dB at 23 Hz


SENSITIVITY:   86.4 dB SPL with 2.83 V @ 1m (4 pi anechoic)




 Review
