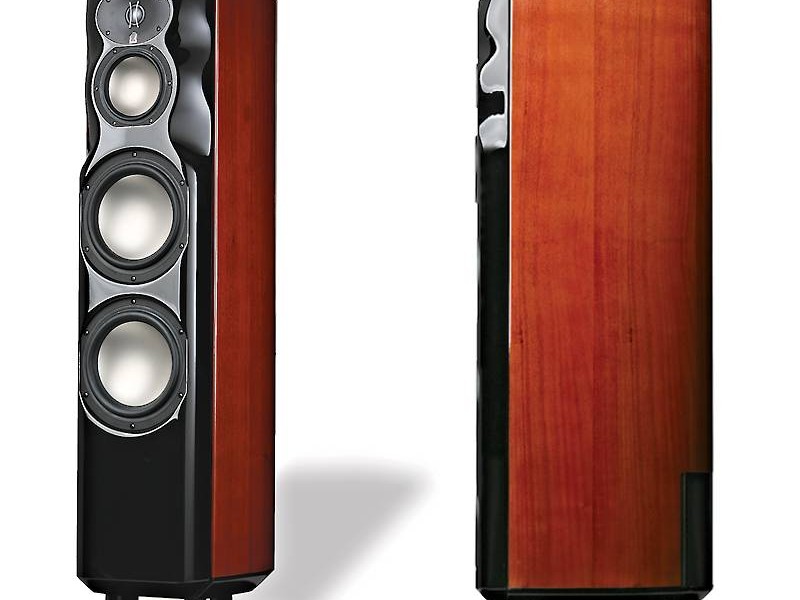

Revel Ultima Studio2 Floorstanding Loudspeaker

Reference Grade Floorstandng Loudspeaker Performance

The Ultima Salon2 and Studio2 are the most visionary speaker systems that the Revel team has ever produced.

Strikingly designed and crafted to exceed the demands of the most challenging installations and tastes, Salon2, and the less imposing Studio2, radiate an elegance and authority that can only be matched by their reference-standard sound quality. Imbued with the Revel philosophy that there is no separation between art and accuracy, the Salon2 does not editorialize sound reproduction; rather, it celebrates the full expression and soul of the actual musical event.

The Studio2 adopts a similar approach to the Salon2 but in a more discreet physical package. It is a three-way system utilizing two 8-inch titanium woofers, a 5 1/4-inch titanium midrange and a 1-inch beryllium tweeter, and is ideal for applications that don’t require the massive output and bottom-octave footprint of the Salon2.

The multiple woofer arrays in the Studio2 offer a fundamental advantage over the more traditional “big” woofer approach without sacrificing a decibel of bass foundation. The smaller cone diameters permit a narrower cabinet waistline, critical for managing diffraction artefacts. The result is pristinely focused imaging and as wide a soundstage as the recording will permit. Bass extension is likewise preserved by virtue of the robust collective output of the multiple woofers. Similarly the total area of the twin 8-inch woofers of a single Studio2 is actually greater than an 11-inch woofer.

Features and Benefits


Rounded baffles and enclosures virtually eliminate diffraction


Separate filter boards for each frequency range


Narrow Sonically Optimized, 2 ½” Thick Baffle that Virtually Eliminates Diffraction Effects

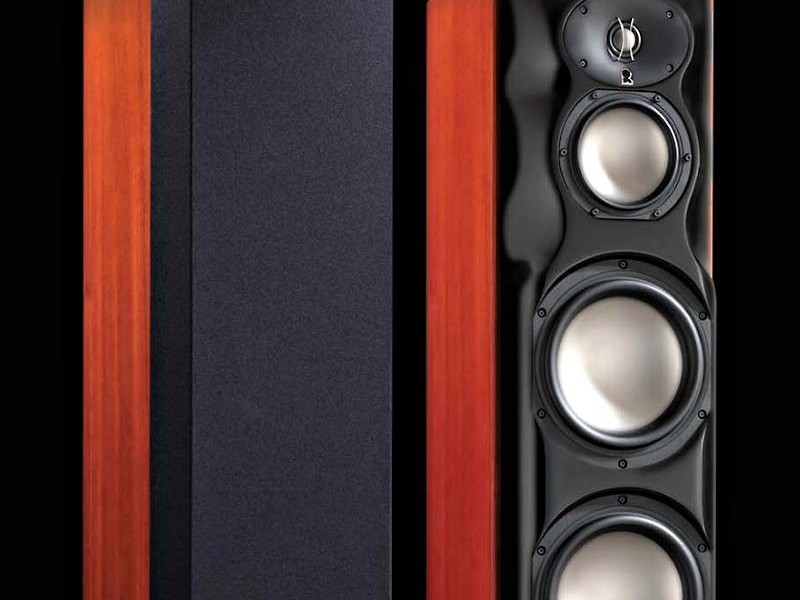

Easily Removable, Magnetically Attached Grilles

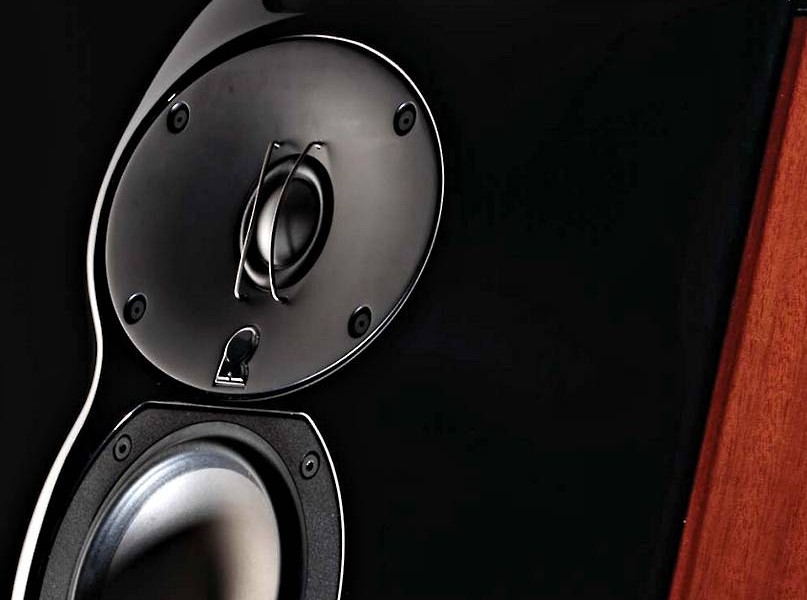

Pure Beryllium Dome Tweeter with 3rd Generation Waveguide Technology for seamless transitions between the tweeter and midrange


Titanium Cone Woofer and Midrange with Inverted-dome Designs


Detailed Specifications:


DESCRIPTION:   Ultima2 Loudspeaker Series, 3-Way Floorstanding Loudspeaker


FREQUENCY RESPONSE:   ±0.5 dB = 31 Hz to 18 kHz / ±1.0 dB = 33 Hz to 20 kHz / ±3 dB = 32 Hz to 45 kHz


DIMENSIONS:   (HEIGHT) 46.3″ (117.6 cm) x (WIDTH) 13.8″ (35.1 cm) x (DEPTH) 20.5″ (52.1 cm)


WEIGHT:   112 lb (50.9 kg) Shipping weight: 140 lb (63.5 kg)


CROSSOVER FREQUENCIES:   Three-way, high-order acoustic response @ 230 Hz and 2 kHz


FINISHES:   Piano black or mahogany finish


HIGH-FREQUENCY DRIVE COMPONENTS: 1″ (2.5 cm) beryllium tweeter


MID-FREQUENCY DRIVE COMPONENTS:   5 ¼” (13.3 cm) titanium cone midrange


LOW-FREQUENCY DRIVE COMPONENTS:   Two 8″ (20 cm) titanium cone woofers


NOMINAL IMPEDANCE:   6 ohms (nominal) 3.7 ohms (minimum @ 90 Hz)


LOW FREQUENCY EXTENSION:   -10 dB at 21 Hz / -6 dB at 25 Hz / -3 dB at 32 Hz




SENSITIVITY:   87.7 dB SPL with 2.83 V @ 1m (4 pi anechoic)
